Underfloor Heating Service
Underfloor heating (UFH) has become an increasingly popular choice in modern homes due to its energy efficiency, even heat distribution, and comfort. Unlike traditional heating methods, such as radiators or forced-air systems, underfloor heating works by heating the floor itself, which then radiates warmth throughout the room. This form of heating is not only aesthetically appealing, as it eliminates the need for bulky radiators, but also provides a more efficient and comfortable heating solution for various spaces. This article explores how underfloor heating works, its different types, advantages, disadvantages, and considerations when installing an underfloor heating system.
How Underfloor Heating Works
Underfloor heating systems operate by circulating warm water or using electric cables or mats to heat the floor. The heat then rises evenly throughout the space, warming the entire room. Because the heat source is located beneath the floor, it provides a gentle and consistent warmth that feels more natural compared to the concentrated heat from traditional radiators.
1. Heat Distribution
The key benefit of underfloor heating is the way it distributes heat evenly across the entire surface area of the floor. Unlike radiators, which heat the air closest to them and result in uneven temperature distribution, underfloor heating radiates warmth upwards, ensuring that every part of the room is heated. This creates a more comfortable environment with fewer hot or cold spots.
2. Thermostat Control
Most underfloor heating systems are controlled by thermostats, allowing users to adjust the temperature to their liking. Advanced thermostats can also be programmed to heat different rooms at different times of the day, providing increased control and energy savings. Smart thermostats can even be connected to Wi-Fi, enabling homeowners to control their heating systems remotely via a smartphone or tablet.
Types of Underfloor Heating
There are two primary types of underfloor heating systems: electric and water-based. Each type has its own advantages and is suited for different applications.
Electric Underfloor Heating
Electric underfloor heating systems, also known as dry systems, use electric cables or mats placed beneath the flooring to generate heat. These systems are typically easier to install than water-based systems and are often used in smaller areas such as bathrooms or kitchens.
Electric Cable Systems: These systems consist of electrical cables installed in a series of loops beneath the floor. The cables are connected to a power source and controlled via a thermostat. Electric cable systems are flexible and can be installed in various shapes and layouts to fit the room’s design.

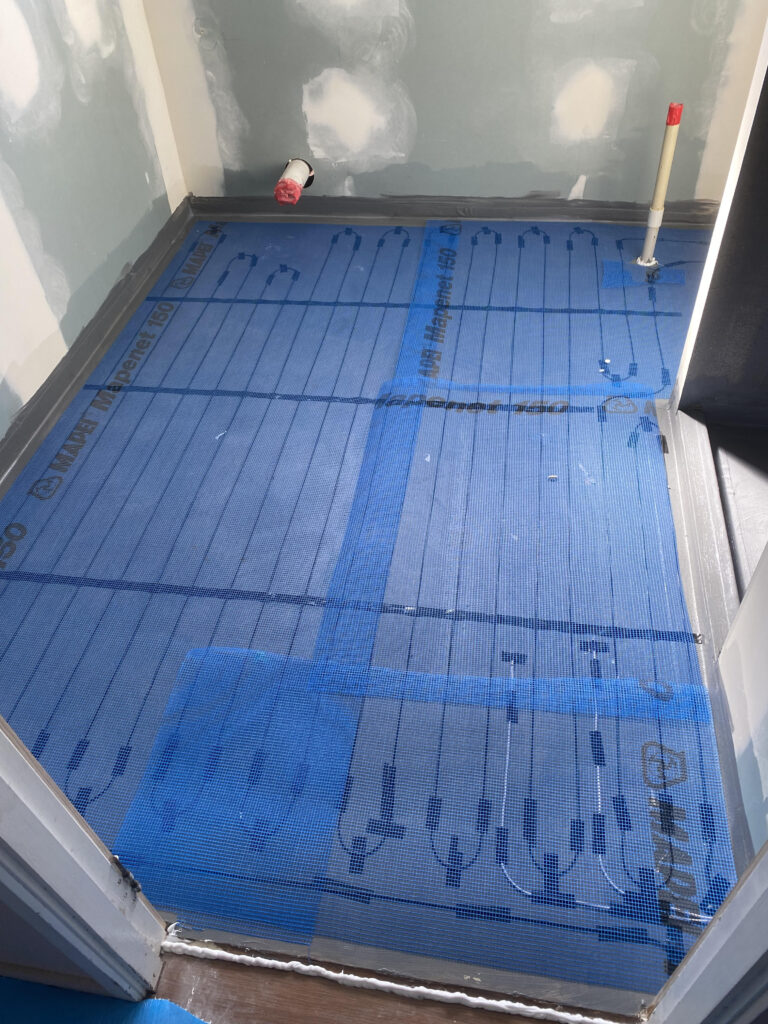

Electric Mat Systems: In an electric mat system, the heating cables are pre-attached to a mat, which is rolled out beneath the flooring. This makes installation quicker and more straightforward. Electric mat systems are ideal for large, regularly shaped areas and can be easily installed under tiles, stone, or laminate floors.
Electric underfloor heating is generally more expensive to run than water-based systems but provides faster heat-up times. It is often used as a supplementary heating solution in specific areas rather than as the primary heating system for an entire home.
Benefits of Underfloor Heating
Underfloor heating offers several advantages over traditional heating systems. Its growing popularity is largely due to the following benefits:
1. Energy Efficiency
Underfloor heating operates at lower temperatures than radiators, typically between 25°C and 35°C, compared to radiator temperatures of 60°C to 75°C. This lower operating temperature makes UFH systems more energy-efficient, as they use less energy to achieve the same level of comfort. In well-insulated homes, underfloor heating can reduce energy consumption and lower heating bills, especially when combined with renewable energy sources like solar panels or heat pumps.
2. Even Heat Distribution
One of the most appealing aspects of underfloor heating is its ability to provide consistent heat throughout the entire room. Because the heat rises from the floor, it eliminates the need for hot spots near radiators and cold areas away from the heat source. This results in a more comfortable living environment with balanced room temperatures.
3. Aesthetics and Space-Saving
Since underfloor heating is installed beneath the floor, it eliminates the need for wall-mounted radiators or heating vents. This not only creates a cleaner, more streamlined look in the room but also frees up wall space for furniture, decorations, or additional storage.
4. Comfort
The comfort of walking on a warm floor, especially during colder months, is one of the most appreciated benefits of underfloor heating. This is particularly true in rooms with tiled or stone flooring, which tend to feel cold underfoot without a heating system in place.
5. Low Maintenance
Once installed, underfloor heating systems require very little maintenance. Electric systems, in particular, are highly reliable and typically do not require any ongoing upkeep. Water-based systems may need occasional checks to ensure that the boiler or heat pump is functioning correctly, but these systems generally have long lifespans and minimal issues.
Disadvantages of Underfloor Heating
While underfloor heating offers many advantages, there are some potential downsides to consider:
1. Higher Installation Costs
The upfront cost of installing underfloor heating can be significantly higher than traditional heating systems, especially for water-based systems. Installing a wet system involves laying a network of pipes and connecting them to a heat source, which can be labor-intensive and costly. Electric systems are less expensive to install but can have higher operating costs in the long term.
2. Slow Heat-Up Time
Underfloor heating systems tend to have slower heat-up times compared to radiators or forced-air systems. This is because the heat must pass through the floor before it reaches the room. While this can be offset by using smart thermostats to pre-heat the space, it may not be ideal for homes where instant heat is required.
3. Not Suitable for All Floor Types
Underfloor heating works best with hard flooring materials such as tile, stone, or laminate, as these materials conduct heat well. However, some types of flooring, such as thick carpets or hardwood, may insulate the heat, reducing the system’s effectiveness. When installing underfloor heating, it’s important to choose compatible flooring materials to ensure optimal performance.
4. Retrofit Challenges
While underfloor heating is relatively easy to install in new builds, retrofitting an existing home can be more complicated and expensive. Installing underfloor heating in an existing home may require raising the floor level to accommodate the heating system, which can affect door heights and require additional renovation work.
Considerations for Installing Underfloor Heating
If you're considering underfloor heating for your home, it's important to take several factors into account:
1. Insulation
Proper insulation is critical for the efficiency of underfloor heating. Without sufficient insulation, much of the heat generated by the system could be lost to the subfloor or the ground below, reducing the system’s efficiency and increasing energy costs. Insulation boards or layers should be installed beneath the heating system to ensure that the heat is directed upwards into the room.
2. Room Layout and Size
Underfloor heating works best in open-plan spaces with minimal obstructions. Furniture and heavy rugs can block heat from rising, so it's important to plan your room layout carefully. Larger spaces may require more extensive systems or higher-powered heating units to ensure even heat distribution.
3. System Type
Choosing between electric and water-based systems depends on your specific needs, budget, and the size of the area being heated. Electric systems are generally more suitable for small, isolated areas, while water-based systems are more cost-effective for larger spaces or entire homes.
4. Flooring Material
As mentioned earlier, underfloor heating works best with flooring materials that conduct heat efficiently, such as tile or stone. If you’re planning to install carpet, hardwood, or laminate flooring, you’ll need to choose products that are compatible with underfloor heating to ensure that the system works effectively.
